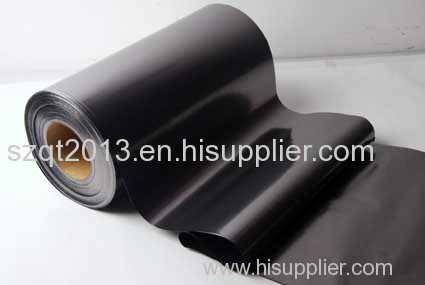

0.13mm thermal graphite sheet for LED light

Price:	6.45 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QTN013

Production Capacity: 3500SQMS/month

Delivery Date: 5-7days

densinity: 1.5.g/cm3

Tensile strength: 650PSI

conductivty: 300W/mk

Color: dark grey

Means of Transport: Ocean,Land

Packing: carton

thickness: 0.13mm

product capacity: 3500SQM/month

Temperature resistance:: -40 t0 400 ℃

Hardness:: 85 shore A

UL flammability rating: 94Vo

High Thermal Conductivity Nature l Graphite Sheet
1.Density:1.5g/cm3
2.Thickness:0.03mm,0.05mm ,0.08mm,0.1mm ,0.2mm 0.15mm,0.3mm ,.0.5mm

Typical Characteristic
Model Number	QTN003	QTN005	QTN007	QTN008	QTN010	QTN013	QTN015
Compostion	Flexible Graphite	Flexible Graphite	Flexible Graphite	Flexible Graphite	Flexible Graphite	Flexible Graphite	Flexible Graphite
Colour	Dark Grey	Dark Grey	Dark Grey	Dark Grey	Dark Grey	Dark Grey	Dark Grey
Thickness	0.03mm	0.05mm	0.07mm	0.08mm	0.10mm	0.13mm	0.15mm
Thickness Tolerance	±0.005mm	±0.005mm	±0.01mm	±0.01mm	±0.02mm	±0.02mm	±0.03.mm
Density	1.5g/cm³	1.5g/cm³	1.5g/cm³	1.5g/cm³	1.5g/cm³	1.5g/cm³	1.5g/cm³
Hareness	85 ShoreA	85 ShoreA	85 ShoreA	85 ShoreA	85 ShoreA	85 ShoreA	85 ShoreA
Tensile Strength	650psi	650psi	650psi	650psi	650psi	650psi	650psi
Temperature Range	-40℃to 500℃	-40℃to 500℃	-40℃to 500℃	-40℃to 500℃	-40℃to 500℃	-40℃to 500℃	-40℃to 500℃
Thermal Conductivity(X-Y direction	600W/Mk	500w/mK	400W/mk	400W/mk	350W/mk	300W/mk	300W/mk
Thermal Conductivity(X-Y direction	600W/Mk	500w/mK	400W/mk	400W/mk	350W/mk	300W/mk	300W/mk
Thermal Conductivity(Z direction	5-7/Mk	5-7W/Mk	5-7W/mk	5-7W/mk	3-5/mk	3-5W/mk	3-5W/mk
Thermal Conductivity(Z direction	5-7/Mk	5-7W/Mk	5-7W/mk	5-7W/mk	3-5/mk	3-5W/mk	3-5W/mk
ThermalResistance 100psi 681Kpa	0.07℃-in² /W 0.42℃-c㎡/W	0.08℃-in²/W 0.51℃-c㎡/W	0.09℃-in²/W 0.57℃-c㎡/W	0.09℃-in²/W 0.57℃-c㎡/W	0.1℃-in²/W 0.66℃-c㎡/W	0.16℃-in²/W 0.95℃-c㎡/W	0.2℃-in²/W 1.07℃-c㎡/W
ThermalResistance 100psi 681Kpa	0.07℃-in² /W 0.42℃-c㎡/W	0.08℃-in²/W 0.51℃-c㎡/W	0.09℃-in²/W 0.57℃-c㎡/W	0.09℃-in²/W 0.57℃-c㎡/W	0.1℃-in²/W 0.66℃-c㎡/W	0.16℃-in²/W 0.95℃-c㎡/W	0.2℃-in²/W 1.07℃-c㎡/W
Volume Resistivity	11*10-4ohm-cm	11*10-4ohm-cm	11*10-4ohm-cm	11*10-4ohm-cm	11*10-4ohm-cm	11*10-4ohm-cm	11*10-4ohm-cm
